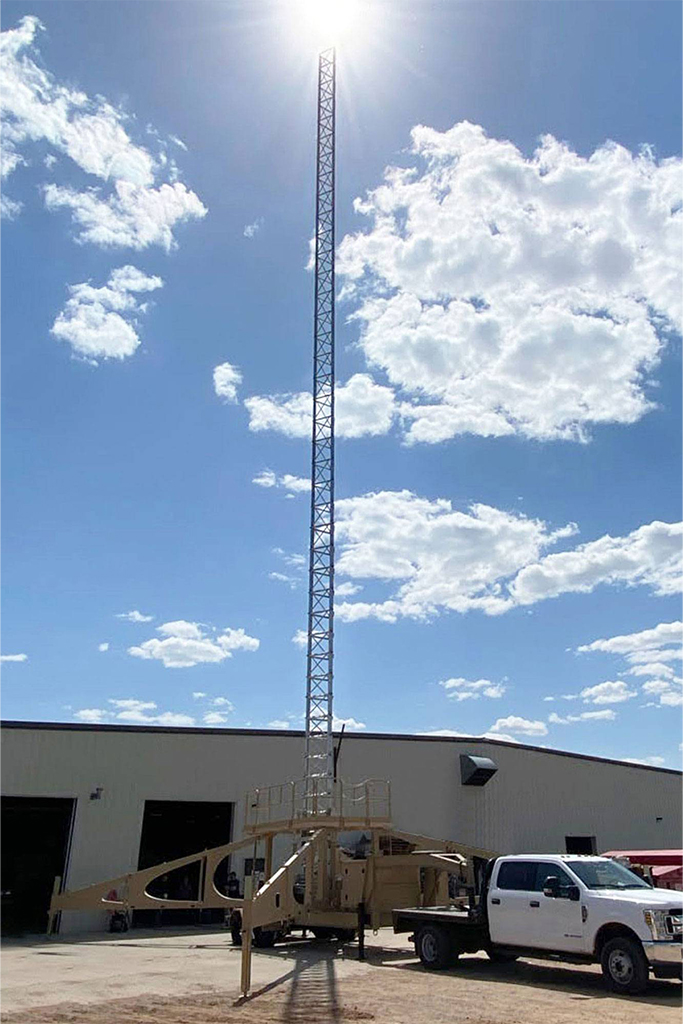

PTW-100
The Tallest, Most Robust, Most Stable Portable Tower Available
The PTW-100 is the most robust and stable self-guided relocatable tower in the world.
- It deploys to a full height of up to 120 ft in under eight minutes.
- Its patented outrigger system unfolds and rotates in one motion to create a stable base under 49 ft x 49 ft.
- Its patented guy wire system attaches directly to the outriggers. This alleviates the need for ground penetration and provides stability for the tower to stand up to hurricane-level winds.
- It can stop at any height up to 120 ft.
- It has a payload capacity of 2,000 lbs with higher payload capacities available.
As the best in its class, the PTW-100 can handle the most demanding applications you throw its way. Because of this, it is ideal for remote long-term or semi-permanent applications.
The PTW-100 also has the option of a ballast system. The ballast system attaches to the end of the outriggers in place of the jack foot for additional stability. See images of the ballast system on the PTW-100 below. You can also contact us for assistance in finding the ideal tower configuration for your needs.
The PTW-100 is available as an 80 ft and 120 ft tower with a lifting capacity of at least 2000 lbs. The PTW relies on its 27,000 lb base weight to keep stable in high winds over 100mph.
- Generators – Upgrade to larger or multiple generators with expanded fuel tanks for use in remote locations.
- Alternative Power – Options include lithium-ion batteries, solar panels, or hydrogen fuel cells to reduce or eliminate the need for external power and reduce generator maintenance.
Safety Options – Include lighting protection for equipment and guard rails for operators working with the payloads.
- WindstableTM – Emergency lowering system that automatically detects and lowers the tower in high winds.
- Towertalk – Enables remote monitoring of tower from any location.
- Customization – If you have unique requirements, we can deliver a solution.
- Ballast System – Attached to the end of the outriggers, in place of the jack foot, for additional stability.
- Payload Mounts
- Rugged Trailer
- Guy Wires
- AC Cooled Shelters
- Digital Height Positioning
- Cable Management Reels
- Solar Charging
The PTX-100 is the most robust and stable mobile tower in the world, built and designed to handle the most demanding applications. The tower deploys quickly raising to full height of up to 120 feet in under five minutes; the exclusive outrigger design unfolds and rotates in one motion to create a stable base under 45 ft x 45 ft. The guy wires attach directly to the outriggers which alleviates the need for ground penetration and which provides the stability for the tower to stand up to hurricane level winds.
