PTM-130
Spec Sheet
Like all our towers in the Large Tower Series, the PTM features our patented ladder-like lattice tower system which is able to reach its maximum height of 80 feet in 5 minutes or less.
What makes this a unique offering in our LTS line is that the PTM-130 is designed for C130 transport. The PTM-130 is a portable, multifunctional solution that is customizable to many different needs. Download the PDF above to learn more or view the PTM-130 product page here.
PTM-130 Specifications
| PTM-130 | ||
|---|---|---|
| Fully Deployed Height | 50′ (15.2 m) | 80′ (24.3 m) |
| Time to Max Deployed Height | 3 Minutes | 5 Minutes |
| Set Up Time¹ | 5-15 Minutes | |
| Ability to Stop at Any Height | Yes | |
| Total Payload Capacity² | 2000 lbs (907.2 kg) | |
| Approximate Tower Weight¹ | 9,900 lbs (4531.4 kg) | 10,800 lbs (4898.8 kg) |

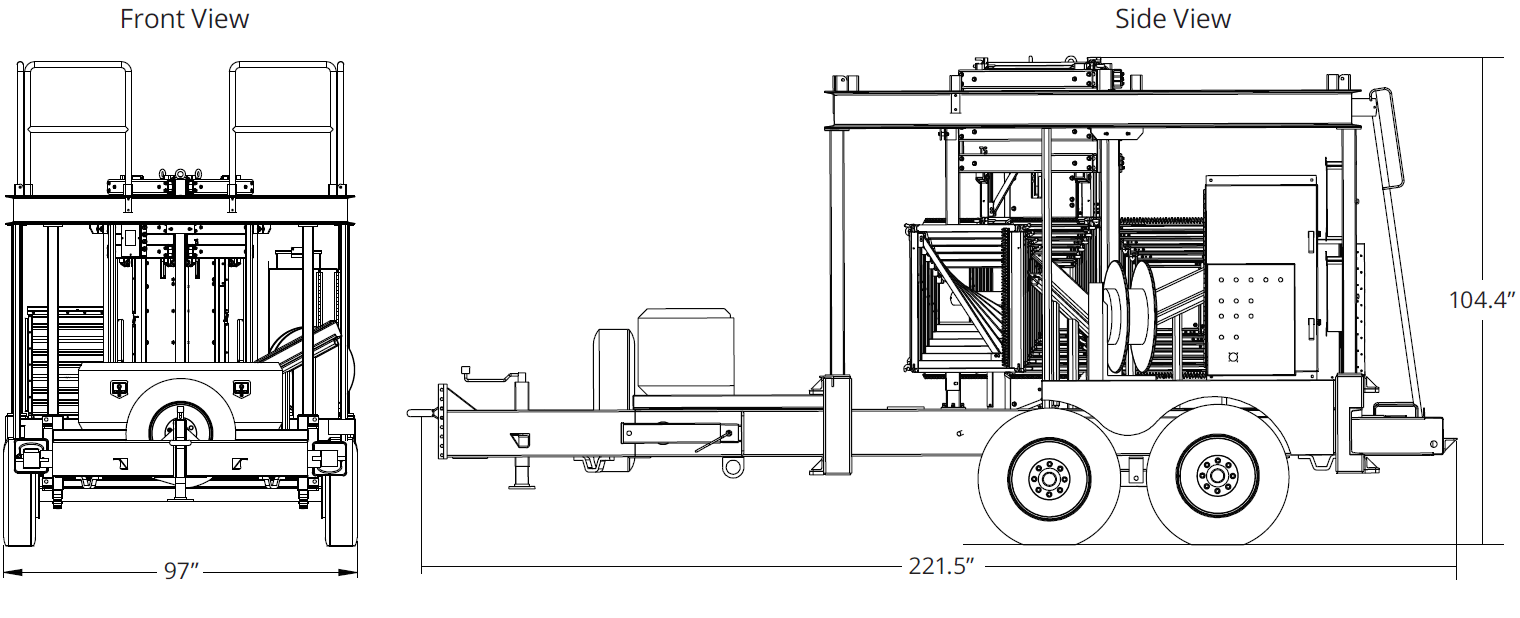

| Overall Dimensions (Stowed) | 97” W x 221.5” L x 104.4” H (2.46m x 5.63m x 2.65m) | |
| Footprint (Deployed)³ | 20′ x 20′ (6.1m x 6.1m) | |
¹ Depending on Options/Conditions
² Higher Payload Capacities Available, Contact Tower Solution for More Information
³ Guy Wires Attach to Outriggers; Do not Break Ground
Options
- Generators – Upgrade to larger or multiple generators with expanded fuel tanks for use in remote locations.
- Alternative Power – Options include lithium-ion batteries, solar panels, or hydrogen fuel cells to reduce or eliminate need for external power and reduce generator maintenance.
- Safety Options – Include lighting protection for equipment and guard rails for operators working with the payloads.
- WindstableTM – Emergency lowering system automatically reduces tower height in high winds
- Towertalk – Enables remote monitoring of tower from any location
- Customization – If you have unique requirements, we can deliver a solution.
- Payload Mounts
- Rugged Trailer
- Guy Wires
- AC Cooled Shelters
- Digital Height Positioning
- Cable Mgmt Reels
- Solar Charging
